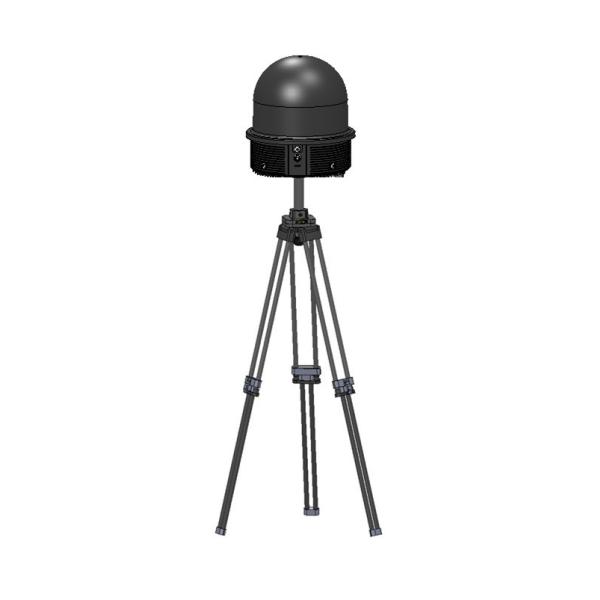

Stationary 5km Drone Detection And 3km Jamming System IP65

Stationary drone detection and jamming system with 5km detection distance and 3km jamming distance

ZD-ZG040/5000/2/3000

Stationary drone detection and jamming system _--- passive detection,recognition,automatic jamming

1. Description

ZD-ZG040/5000/2/3000 stationary drone detection and jamming system consists of detection subsystem and jamming subsystem. It designed as small size. Both subsystems can work separately which makes deployment convenient. The detection system applies radio frequency identification and recognition technology. By using this technology, the system can identify drone model and frequency accurately with a large detection distance of 5km. The jamming system applies intelligent interference code jamming technology to achieve high jamming efficiency. It can use low RF power to get long jamming distance of 3km. Then the system can provide a reliable solution of drone defense.

1. Functions

Accurate recognition:It recognizes type and unique electronic fingerprint of drone accurately and starts alert；

¨ No duty people require:It can activate no duty people mode. Once drones are detected, the system starts alert;

¨ Black and white lists:The can mark drones on black and white lists. Drones on the white lists will not activate alert；

¨ Drone directional find:The system has directional search module which can find directional of drone inside its detection range.

¨Directional jamming: The device has low radiation power so that it has raw effect on surrounding area; but it has many jamming frequency bands;

¨ Extension ability:the system can be updated to add new drone detection bands;

¨Built in the latest NVIDIA JETSON XAVIER​ ai computer process system;

¨ Built in GPS module to provide GPS location;

¨ It applies special lightning protection components to improve its stability in extreme environment；

¨ Continuously work time:All day 24h

1. Technical specifications

¨ Detection distance:≥5km(for ideal open place )

¨ Simultaneously detection drone quantity :≥30 drones

¨ Detection bands:2.4G(2.4GHz～2.485 GHz),5.8G(5.725GHz～5.85GHz)

¨ Drone direction detection accuracy:≤9 degree(follow)

¨ Detection sensitivity:better than -95dBm(25kHz)

¨ Jamming bands:0.9G,1.2G,1.5G,2.4G,5.8G

¨ Jamming distance:3km(for phantom 3,4)

¨ Device weight:Detection main unit:10Kg,Jamming main unit:20Kg,

¨ Operation voltage:AC220V±20V

¨ Device dimensions:Detection main unit 350mm*240mm*150mm,

Jamming main unit:410´320´170mm

¨ Operation temperature:-40°~+70°C

¨ Proof:IP65.
